Description:

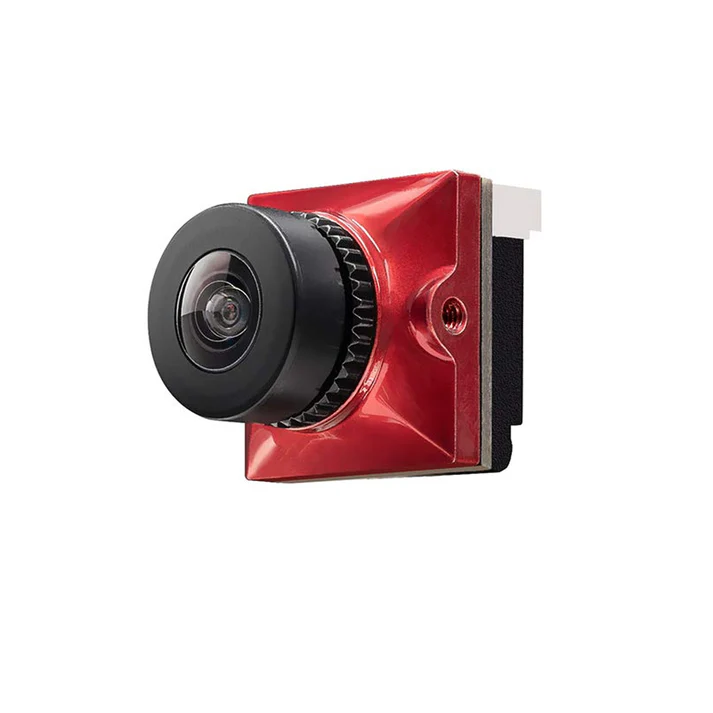

The Caddx Ratel 2 1/1.8″ 1200TVL FPV Camera features superb night vision and clear and sharper images. The Ratel 2 is equipped with high quality 1/1.8″ inch starlight, a Super WDR sensor, providing up to 0.0001 sensitivity of lux, 8ms low latency, 4:3/16:9, and PAL/NTSC switchable, and a separate OSD menu.
Specifications:
- Item Type: FPV Camera
- Colours: Red, Black
- S/N Ratio: 60dB (AGC OFF)
- Camera: OSD
- Input Power: 5-40 V
- Resolution:1200TVL
- Image Sensor: 1/1.8″ Inch starlight HDR sensor
- Horizontal Resolution: 1200TVL
- Image Size: 16:9 4:3 (changeable)
- Min. Illumination: 0.0001LUX
- Video Output: CVBS
Features:
- OSD menu
- Switch between PAL and NTSC video standards
- High-quality 1/1.18″ Starlight HDR sensor
- Shutter Speed: PAL: 1/50~100,000; NTSC: 1/60~100,000
- DNR: 3-DNR
- LANGUAGE: ENG/FRANCE/RUS/SPA/PU/KOREA/CHINA/JAPAN
- Day/Night: Auto/Color/B W/EXT
- Caddx Ratel FPV Camera uses a 1/1.8″ inch starlight HDR sensor, and lower latency than a normal camera to provide high-quality images.
- Wide Dynamic Range
- TV System: NTSC PAL (changeable)
- WDR: Super WDR
Useful Links:
- Focusing your FPV Camera.
- All About Multirotor Drone FPV Cameras
- Getting the Right FPV Drone Camera Settings.
Package Included:
- 1 x Caddx Ratel 2 Camera
- 1 x 5D-OSD Menu Board
- 1x 2-Pin Silicon Cable
- 1x 3-Pin Silicon Cable
- 1 x 1.5mm Allen Wrench
