TX15 Max ELRS M2 Radio Controller Professional FPV RC Transmitter Long Range, Low Latency Remote For Drones & Aircraft (RED)

RadioMaster TX15 MAX: The Future Is Here, One Step Ahead

RadioMaster continues to redefine the open-source remote control landscape. After years of collaboration with open-source partners and users, we proudly introduce the TX15 MAX — a next-generation radio controller engineered for ultimate precision, performance, and style.

Powered by the high-performance STM32 H7 chip, the TX15 MAX delivers ultra-smooth EdgeTX control, instant model switching, and lightning-fast script execution. With 4GB of flash storage and MicroSD card expansion, it offers virtually unlimited space for models, scripts, sounds, and themes.

Equipped with the LR1121 Semtech transceiver, the TX15 MAX supports both 2.4GHz and 900MHz ExpressLRS (ELRS), providing long-range and low-latency performance even in challenging RF environments. A smart balance battery circuit extends flight time, while the foldable antenna design enhances portability and signal reliability.

The built-in gyro with TiltX/TiltY functions unlocks advanced control possibilities — enabling you to trigger switches, pan/tilt cameras, or activate telemetry callouts simply by tilting your radio.

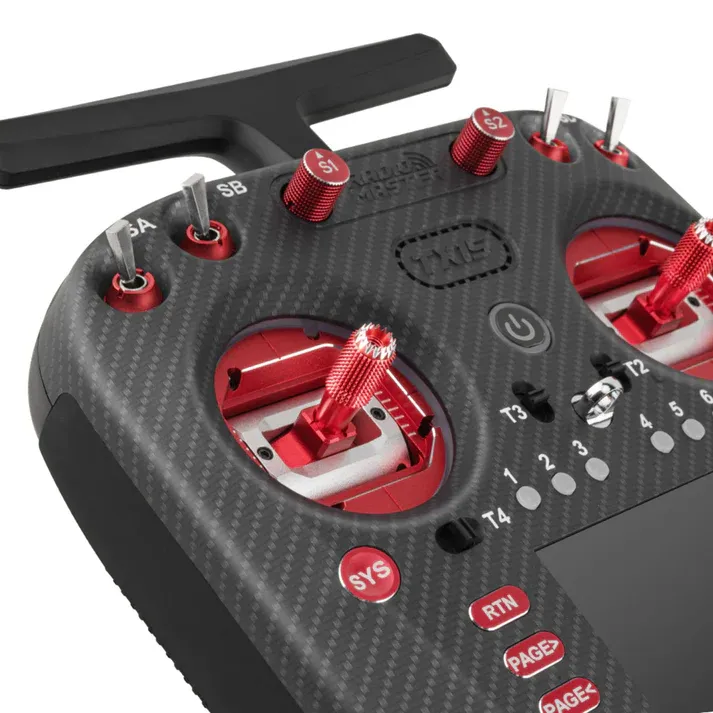

Enjoy sharp, vibrant visuals on the 3.5-inch IPS touchscreen featuring 262k color resolution and 600 nits brightness, ensuring clear visibility even under sunlight. The TX15 MAX stands out with AG02 CNC aluminum gimbals (available in red, black, or gold), upgraded aluminum buttons, a scroll wheel, and a carbon-fiber-look case for a premium feel.

Integrated RGB LED gimbal rings allow LUA-controlled lighting customization, while the efficient cooling system, USB-C port, SIM connectivity, and firmware update support ensure top-tier reliability and performance. Interchangeable shoulder switches give you full control customization, letting you choose between momentary or latching styles.

Prefer the standard edition? Explore the TX15 Standard for a lighter configuration.

Features:

• Blazing-Fast Performance: Powered by the STM32 H7 chip for unmatched processing speed and response.
• Touchscreen Display: 3.5-inch, 480 × 320 IPS touchscreen with vivid colors and sharp details.
• Precision Gimbals: Premium AG02 CNC Hall sensor gimbals for enhanced smoothness and control.
• Built-in ExpressLRS: 2.4GHz / 900MHz integration for stable, long-range communication.
• Smart Balance Battery Circuit: Improves battery efficiency and extends operational time.
• Powerful Cooling System: Low-noise, high-output fans with an aluminum heat sink maintain stable temperatures.
• AG02 Gimbals: 20% reduced weight with adjustable travel on both vertical and horizontal axes.
• Customizable RGB Gimbal Light Ring: LUA-controlled RGB LED lighting for personalization.
• Foldable Antenna: Compact, easy to carry, and strong in signal performance.
• Built-in Microphone: Reserved for future expansion.
• Built-in Gyro: Enables tilt-based actions such as camera control and telemetry triggers.
• Memory: 4GB onboard flash with external MicroSD support.
• Interchangeable Shoulder Switches: Adapt controls to your preferred flying style.

Specifications:

• Item: TX15 MAX Radio Controller
• Size: 178 × 168 × 81mm
• Weight: 672g (without battery)
• Color Options: Red / Black / Gold
• Frequency: 2.400GHz OR Sub-G 900MHz
• Internal RF: ELRS 2.4GHz / Sub-G 900MHz
• Supported Protocols: ExpressLRS
• Cooling Fan: Yes
• Transmitter Module: Built-in ELRS
• Built-in Flash Size: 4GB
• Built-in Microphone: Yes (for future expansion)
• Built-in Gyro: Yes (ICM-42607-C)
• MicroSD Card: 32GB / FAT32 (Inserting disables onboard flash)
• Antenna Gain: 2dB (transmit power adjustable)
• Current: 875mA (max power output)
• Voltage Range: 6.6 – 8.4V DC
• Radio Firmware: EdgeTX (requires version 3.0.0 or later)
• Module Firmware: ExpressLRS
• Channels: Max 16 (receiver dependent)
• Display: 3.5-inch IPS touchscreen (480 × 320 resolution)

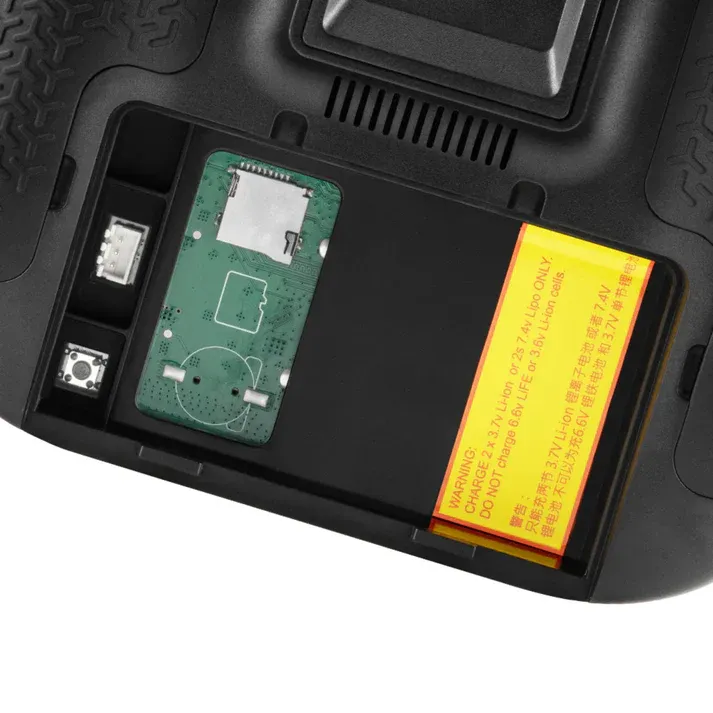

• Battery: 7.4V 2-cell Li-Po / Two 3.7V 18650 Li-Ion / 21700 5000mAh (batteries not included)
• Connectivity: USB-C
• Gimbals: AG02 CNC Hall sensor gimbals
• Gimbal Sticks: M4
• Upgrade Method: USB-C (UF2)
• Module Bay: JR-compatible for additional modules

Dimensions:

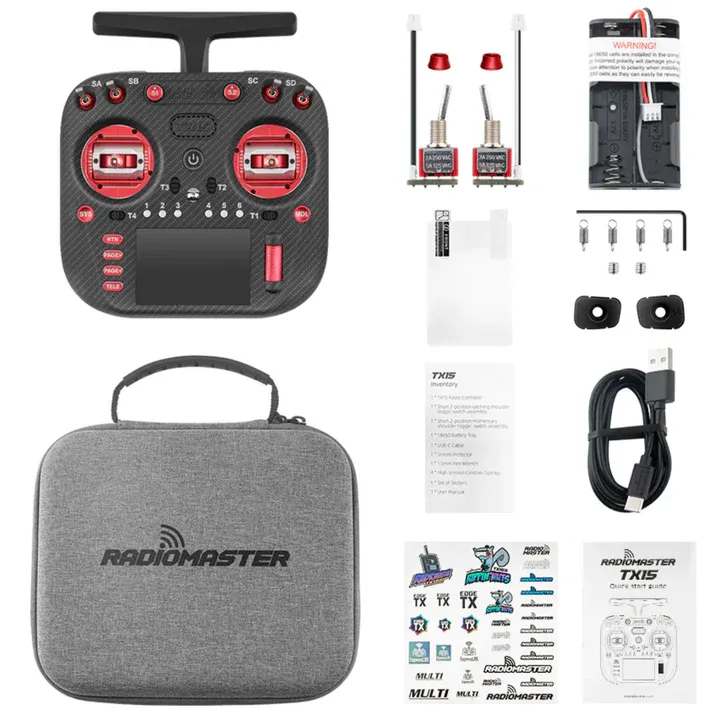

Package Includes:

• 1 × TX15 MAX Radio Controller
• 1 × Signature Carry Case
• 1 × Short 2-Position Latching Shoulder Toggle Switch Assembly
• 1 × Short 2-Position Momentary Shoulder Toggle Switch Assembly
• 1 × 18650 Battery Tray
• 1 × USB-C Cable
• 1 × Screen Protector
• 1 × 1.5mm Hex Wrench
• 4 × High Tension Gimbal Springs
• 2 × Gimbal Stick Set Screws
• 1 × Stickers Set
• 1 × User Manual
• 1 × Inventory Card
